Wire Altronix 6062 Timer for Siren Control

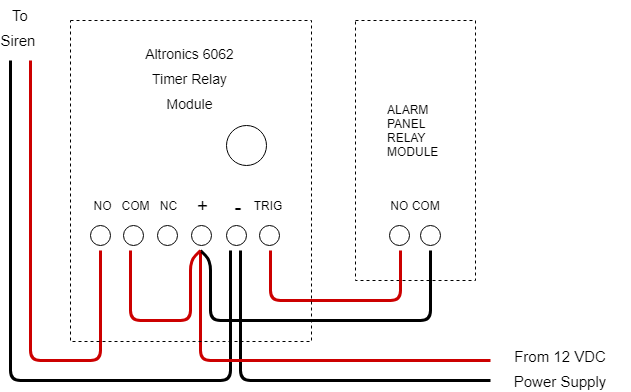

Wiring diagram to use Timer Relay for Siren Operation

This drawing shows how to wire an Altronics 6062 Timer Relay module with a security panel relay. This works well if you need to run a siren on a security panel event and need a customized siren run time other than what the panel can provide.
