Wire Bosch Popits with Sensor Devices

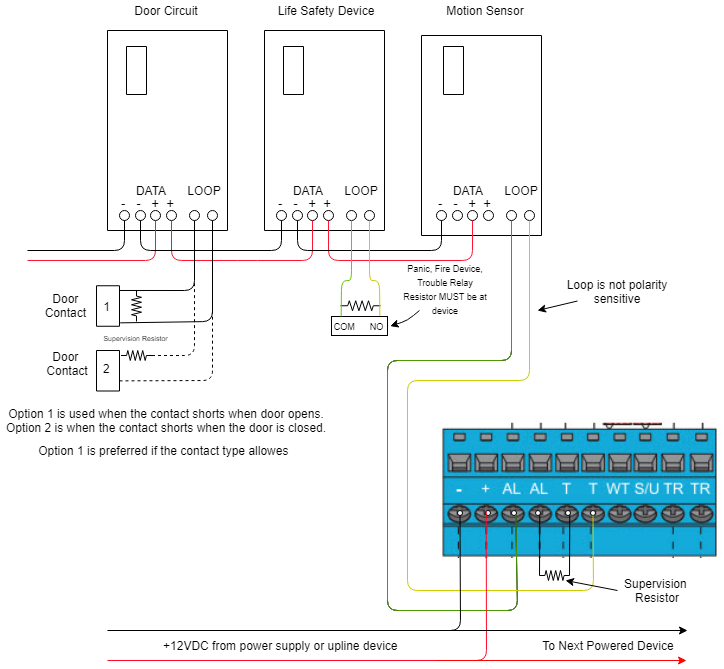

POP IT Wiring schematic

Please note that the DATA wires and the +12VDC wires are not the same circuits.

If using a 4 conductor cable,  you can use the NON-red and black wires for the DATA. You must maintain polarity.

Please reserve the Red and Black for device power.
